Technical Specifications:

  • Maximum pressure: 10000 lbs / 5 Tons

  • Heating plate size: 3 x 4 inch / 76 x 102 mm

  • Maximum temperature: up to 302 °F / 150 °C

  • Power:  360 W

  • Current: 3.3 A / 1.65 A

  • Voltage: 110 V / 220 V

  • Weight: 31 lbs / 14.1 kg

  • Dimensions: 10 x 9 x 18 inch / 26 x 23 x 45 cm

  • Package dimensions: 14 x 13 x 22 inch / 36 x 32 x 55 cm

  • Package weight (with the product): 36 lb / 16.2 kg

  • Certifications: CE / RoHS

  • Limited warranty: 2 years

  • Discreet Packaging

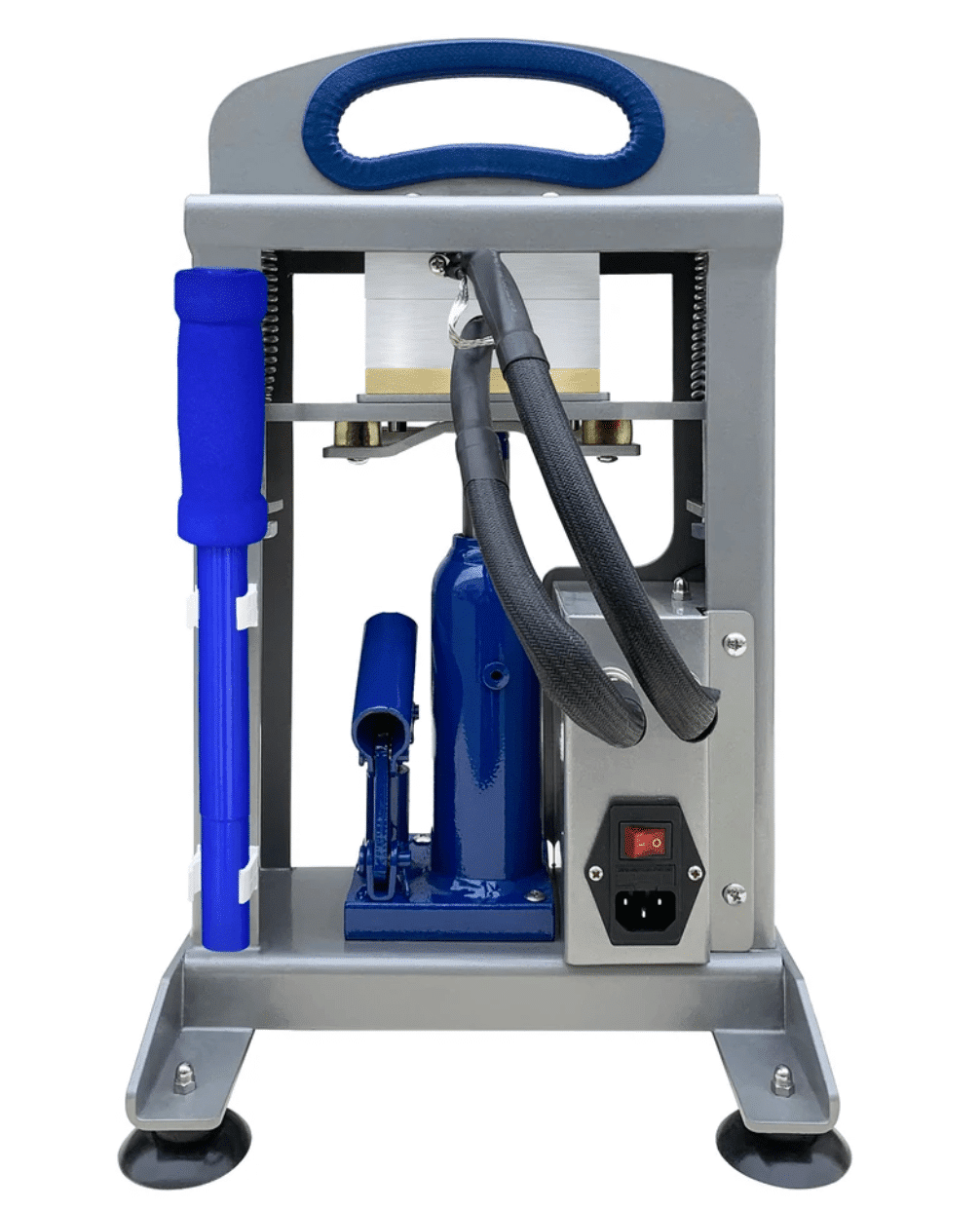

The Dulytek® DHP5 5 Ton Hydraulic Rosin Press offers a lighter alternative to our popular DHP7 machine. It features 3″ x 4″ dual heating solid aluminum insulated plates, a new precision-built two-channel temperature and timer controller, an easily replaceable oil-leak-free bottle jack, and a sturdy frame.

Operating this machine is as simple as our other hydraulic series models. Just configure your press parameters, pump the cranking handle to generate the desired pressure between the plates, set the timer, and when the timer finishes, release the plates to collect the freshly pressed rosin! Additionally, the DHP5 press includes a complimentary starter kit consisting of essential tools and accessories: two rosin collection tools, a non-stick silicone mat, 10 sheets of parchment paper, a 3ml rosin storage jar, and four magnets.

Please note that the machine is available in two versions: 110V for North American customers and 220V for European and Australian customers. Kindly be aware that the 220V presses are not shipped to US and Canada addresses.

Sold By: Dulytek
